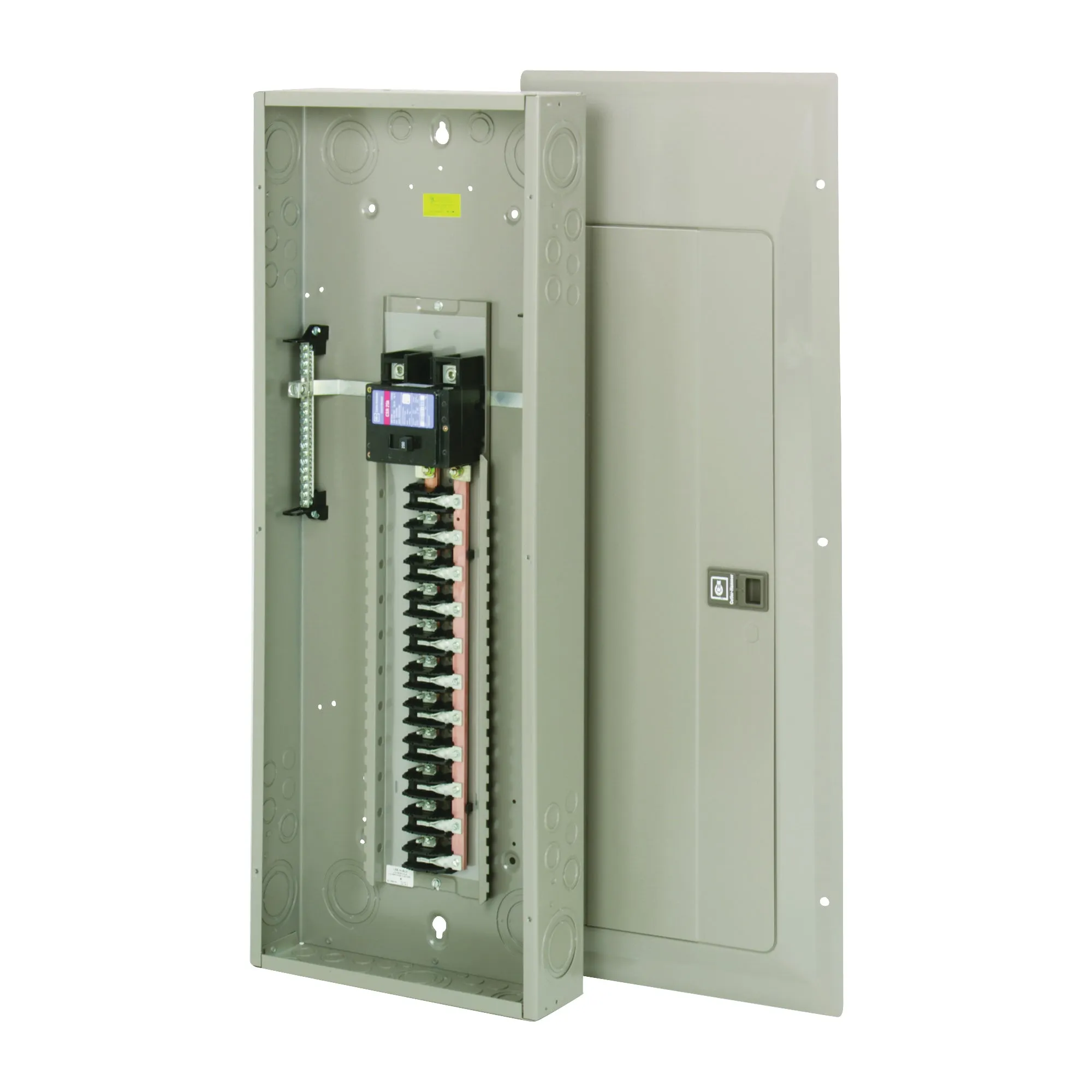

Sheet steel enclosure. Single phase, 3-wire, factory bonded split neutral, 42 (3/4 in) spaces, 42 poles, 120/240 V. Main breaker type CSR at 35,000 AIC when used with CH or CHP branch breakers. Solid copper bus bar. Twin neutral with cross bus. Unused neutral connections may be used for termination of equipment grounds. Listed for use as service equipment with twin neutral doubling as neutral/ground; remove bonding strap for separate neutral/ground bars for sub-feed applications. Includes combination surface/flush cover. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotate enclosure and trim 180 deg for bottom feed. 14-5/16 in x 37 in x 3-7/8 in. UL listed file E8741.
Product Details
Manufacturer:
Manufacturer's Part Number: CH42B200KP
Show me more
Product Specifications
| Bus Bar Material | Copper |
| Cable Size | 2 AWG |
| Current Rating | 200 A |
| Enclosure Type | NEMA 1 |
| Finish | Baked Urethane |
| Includes | Flush Cover and Circuit Directory |
| Interrupt Rating | 25 kA |
| Mounting Type | Flush |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Number of Spaces | 42 |
| Voltage Rating | 120/240 V |
